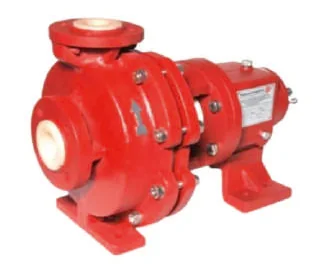

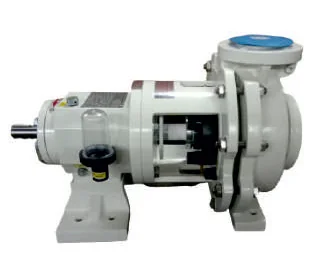

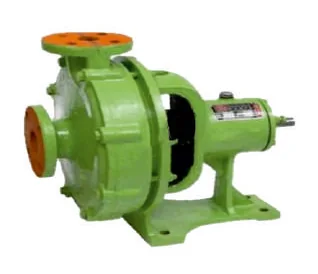

KBE PVDF / PTFE / FEP / PFA / Rubber Lined Pumps

Lined centrifugal pumps for aggressive chemicals, from 50 m³/hr PVDF units to 450 m³/hr rubber lined pumps.

Overview

Centrifugal pumps lined with PVDF, PTFE, FEP, PFA or rubber for handling aggressive and corrosive chemicals.

Series I PVDF centrifugal pumps — capacity up to 50 m³/hr, head up to 60 m, 1450 & 2900 RPM, up to 5 HP, up to 110 °C
Series II high speed — capacity up to 70 m³/hr, head up to 55 m, 1450 & 2900 RPM, 1 HP to 30 HP, up to 180 °C
Series III — capacity up to 200 m³/hr, head up to 140 m, 1450 & 2900 RPM, 7.5 HP to 75 HP, up to 180 °C
Rubber lined pumps — capacity up to 450 m³/hr, head up to 100 m, 1450 & 2900 RPM, 2 HP to 100 HP, up to 100 °C

Chemical Process Pumps & Filtration
KBE Metallic Centrifugal Pumps
Self-priming, centrifugal, vertical in-line and air-cooled thermic fluid pumps in cast steel, stainless steel, Alloy 20 and Hastelloy.
Chemical Process Pumps & Filtration
KBE Polypropylene Centrifugal Chemical Pumps
PP monoblock, coupled and vertical sealless chemical pumps for corrosive liquids up to 60 °C.
Chemical Process Pumps & Filtration
KBE Sealless Magnetic Drive Pumps
Sealless magnetic drive chemical pumps in PP and GFRPP, from 30 LPM to 270 LPM.
Chemical Process Pumps & Filtration
KBE Air Operated Double Diaphragm Pumps
AODD pumps in PP, PVDF, aluminium, PTFE, SS-316 and cast iron, sizes 6 mm to 80 mm.
