Chemical Process Pumps & Filtration
KBE Metallic Centrifugal Pumps
Self-priming, centrifugal, vertical in-line and air-cooled thermic fluid pumps in cast steel, stainless steel, Alloy 20 and Hastelloy.
Chemical Process Pumps & Filtration

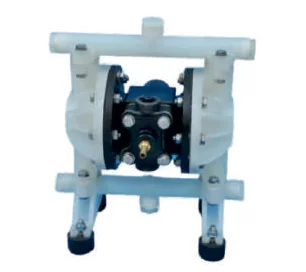

KBE Air Operated Double Diaphragm Pumps
AODD pumps in PP, PVDF, aluminium, PTFE, SS-316 and cast iron, sizes 6 mm to 80 mm.
- Material of Construction
- PP / PVDF / Aluminium / PTFE / SS-316 / CI
- Sizes
- 6 / 15 / 25 / 40 / 50 / 80 mm
- Diaphragm
- PTFE / Santoprene / Neoprene
Overview
Air operated double diaphragm (AODD) pumps for chemical transfer, available in PP, PVDF, aluminium, PTFE, SS-316 and cast iron, with PTFE, Santoprene or Neoprene diaphragms.
Sizes
- ½" × ½" — capacity 25 LPM, pressure 0–5 kg/cm², air pressure 2–3 kg/cm²
- 1" × 1" — capacity 120 LPM, pressure 0–6 kg/cm², air pressure 3–4 kg/cm²
- 1½" × 1½" — capacity 270 LPM, pressure 0–7 kg/cm², air pressure 4–6 kg/cm²
- 2" × 2" — capacity 520 LPM, pressure 0–8 kg/cm², air pressure 6–7 kg/cm²
Technical Specifications
- Material of Construction
- PP / PVDF / Aluminium / PTFE / SS-316 / CI
- Sizes
- 6 / 15 / 25 / 40 / 50 / 80 mm
- Diaphragm
- PTFE / Santoprene / Neoprene
