KBE Enclosed Conveyor Tracks & Curves
Hot-dip galvanised straight tracks, horizontal and vertical curves, flanges, maintenance tracks and expansion tubes.
Overview
Enclosed tracks and curves for 5000 and 7000 series conveyor chains, with flanges, maintenance tracks and expansion tubes to complete the line. Horizontal curves and vertical bends are hot-dip galvanised.
5000 Series

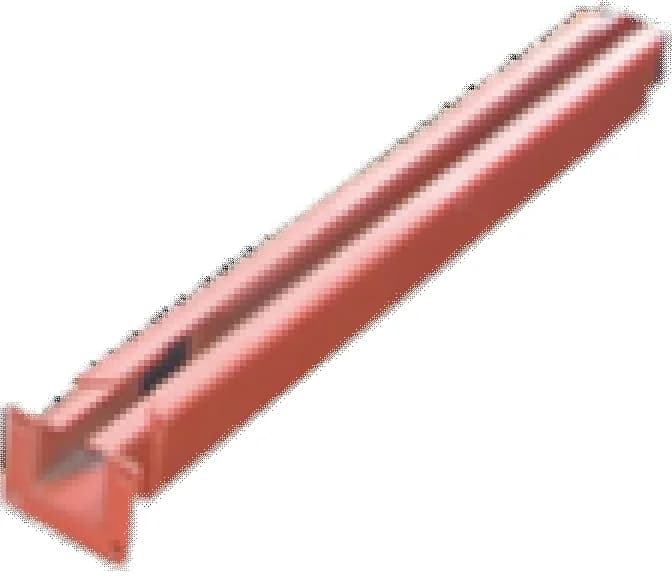

- Straight track

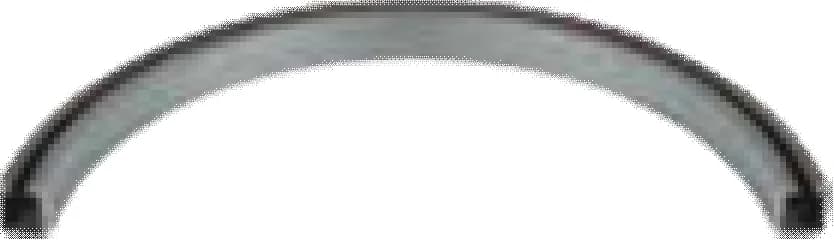

- Horizontal curve R600 mm / 180°

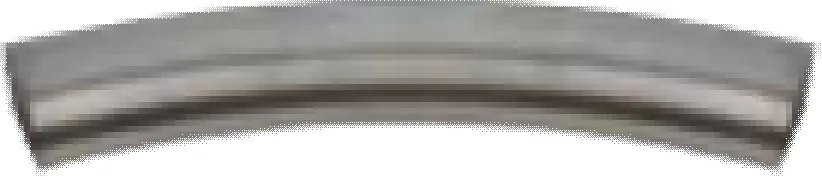

- Vertical curve up R600 mm / 180°

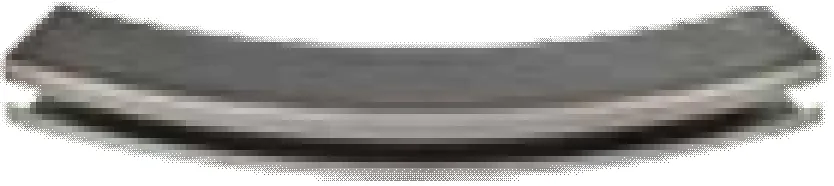

- Vertical curve down R600 mm / 180°
- Flange, maintenance track, expansion tube
7000 Series
- Straight track
- Horizontal curve R700 mm / 180°
- Vertical curve up R600 mm / 180°
- Vertical curve down R600 mm / 180°
- Flange, maintenance track, expansion tube
Technical Specifications
Contact us for specifications and availability.
