Powder Coating Spray Machine
KBE-M40 Automatic
Automatic M40 equipment: M40 controllers in one control cabinet, with adjustable height and movement range.
- Min. Input Pressure (dynamic)
- 6 bar
- Max. Input Pressure
- 10 bar
- Max. Water Vapour Content
- 1.3 g/m³
- Max. Oil Vapour Content
- 0.1 mg/m³
Overview

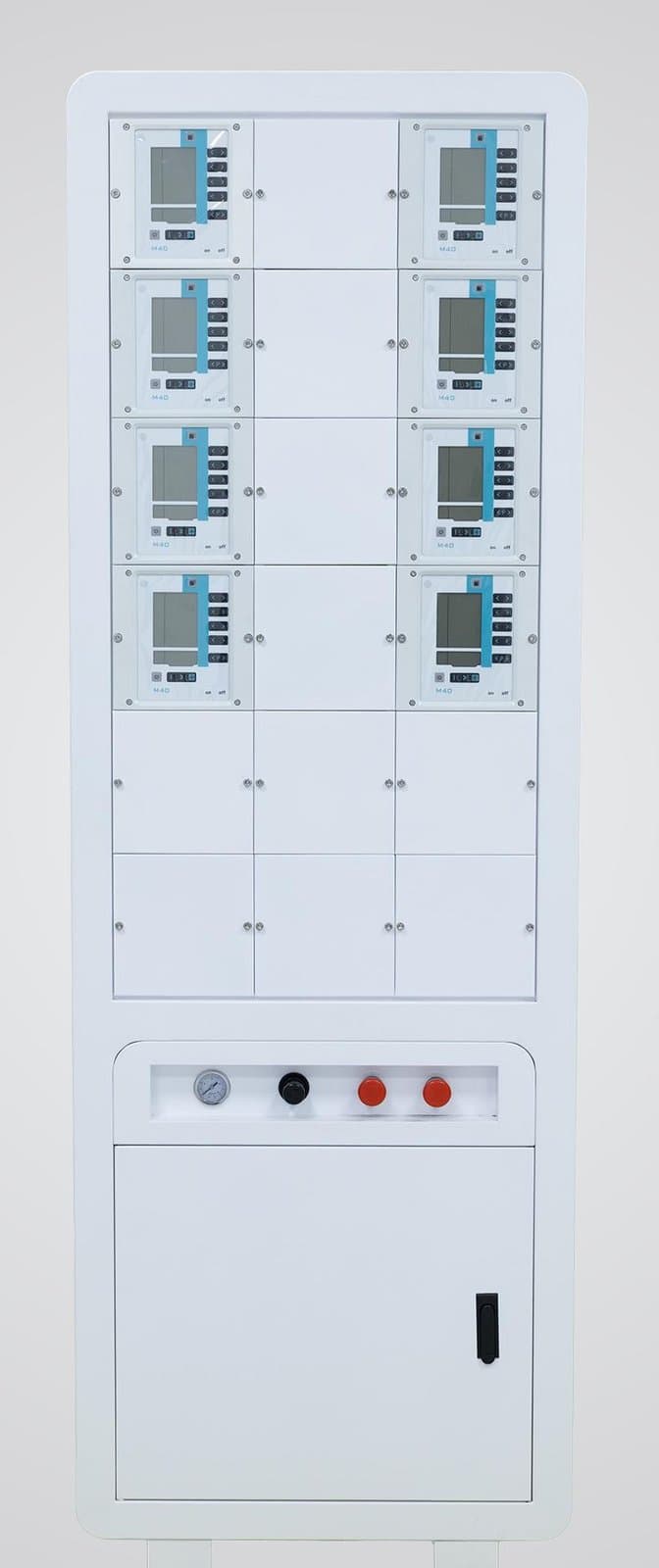

KBE-M40 automatic equipment houses multiple M40 controllers in a single control cabinet for automatic powder coating lines. The height can be designed according to different requirements, with LED control panels and a freely adjustable movement range.
Key Features
- Multiple M40 controllers in one cabinet
- LED control panel
- Height designed to your requirements, freely adjustable movement range
Height & Travel Options
- Total height 2.5 m — effective travel 1.5 m (lowest 0.7 m, highest 2.2 m)
- Total height 3 m — effective travel 2 m (lowest 0.7 m, highest 2.7 m)
- Total height 3.5 m — effective travel 2.5 m (lowest 0.7 m, highest 3.2 m)
- Total height 4 m — effective travel 3 m (lowest 0.7 m, highest 3.7 m)
Technical Specifications
- Min. Input Pressure (dynamic)
- 6 bar
- Max. Input Pressure
- 10 bar
- Max. Water Vapour Content
- 1.3 g/m³
- Max. Oil Vapour Content
- 0.1 mg/m³
- Max. Compressed Air Consumption
- 8 Nm³/h
- Input Voltage
- 100–240 V
- Frequency
- 45–60 Hz
- Powder Charge Rate
- 92–95%
