Powder Coating Spray Machine
KBE-M20
Electrostatic powder coating machine that forms a uniform coating thickness with excellent adhesion and reduced powder waste.
Powder Coating Spray Machine
KBE-M40
Electrostatic powder coating machine for all types of workpieces and grooves — suitable for epoxy, metal and Teflon powders.
- Min. Input Pressure (dynamic)
- 6 bar
- Max. Input Pressure
- 10 bar
- Max. Water Vapour Content
- 1.3 g/m³
- Max. Oil Vapour Content
- 0.1 mg/m³
Overview

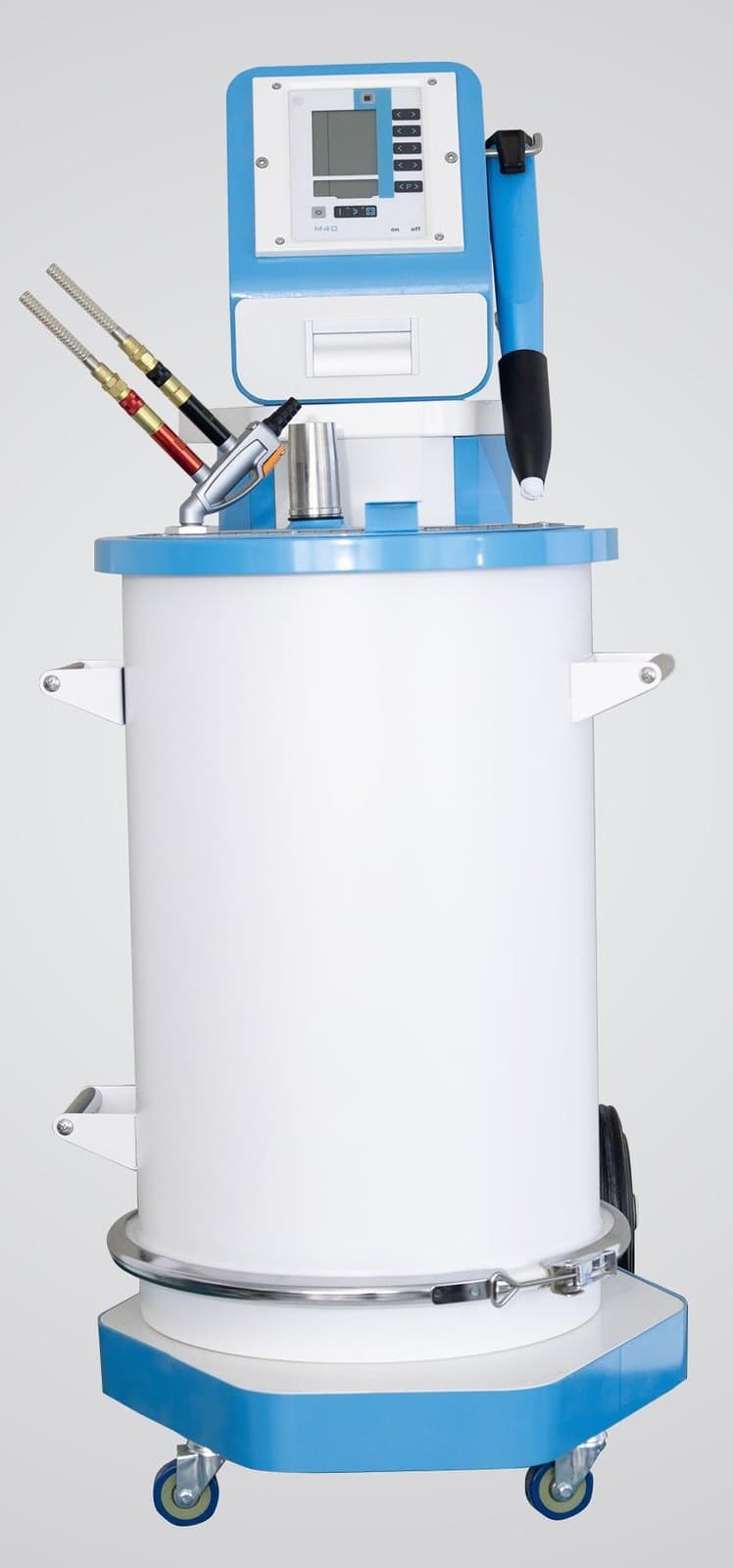

The KBE-M40 electrostatic powder coating machine is suitable for all types of workpieces and grooves, and for epoxy powder, metal powder, Teflon powder and more.
Supplied with the controller, manual powder spray gun, powder pump and powder bucket. Available as a trolley machine with powder hopper, an M40-T version and compact bench-top configurations.
Key Features
- Suitable for all types of workpieces and grooves
- Suitable for epoxy powder, metal powder, Teflon powder and more
Supplied With

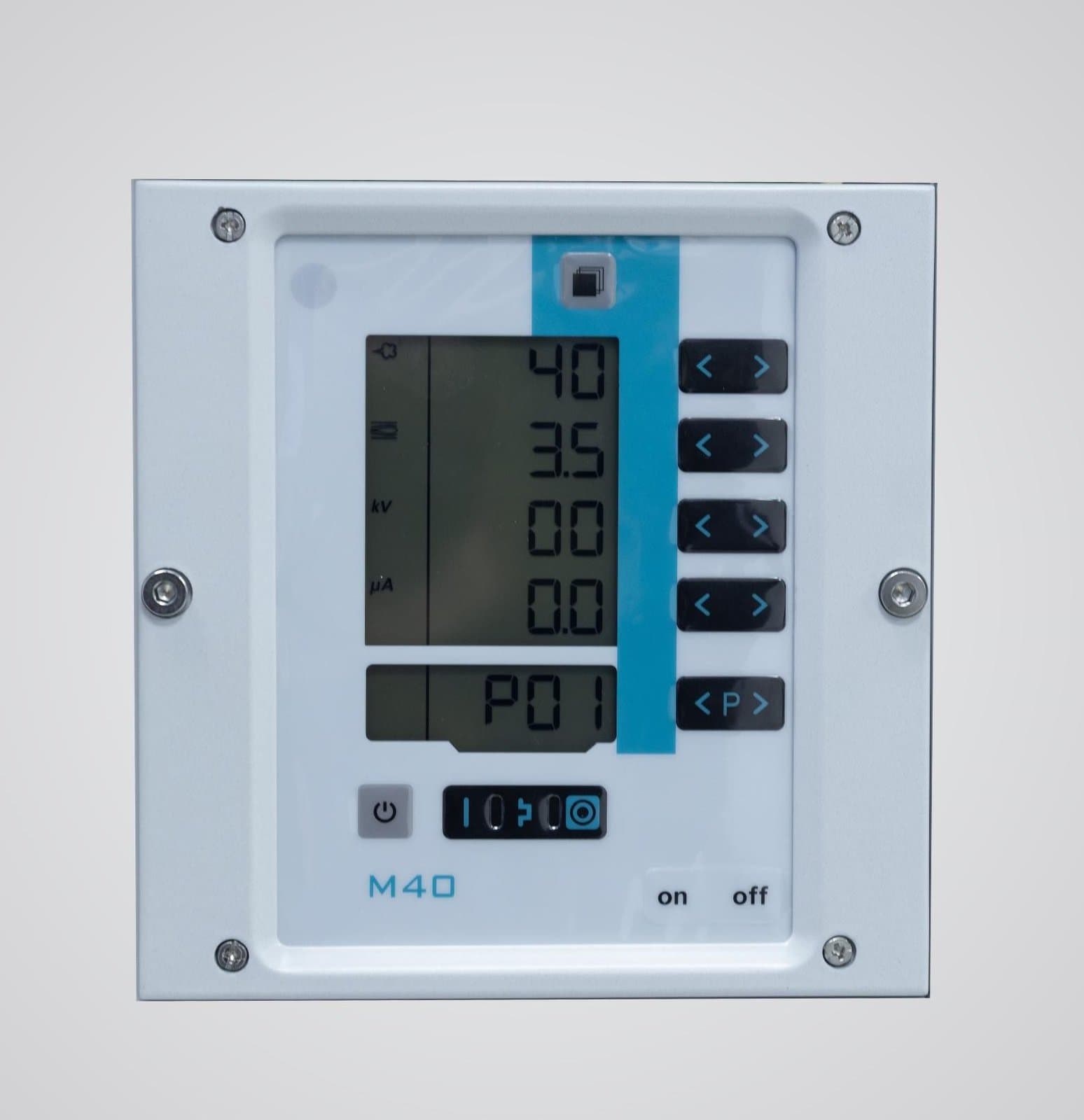

- Controller
- Manual powder spray gun
- Powder pump
- Powder bucket
M40-T Version
- Size 500 × 850 × 1150 mm
- Weight 28 kg
- Powder barrel size 600 × 400 mm
Technical Specifications
- Min. Input Pressure (dynamic)
- 6 bar
- Max. Input Pressure
- 10 bar
- Max. Water Vapour Content
- 1.3 g/m³
- Max. Oil Vapour Content
- 0.1 mg/m³
- Max. Compressed Air Consumption
- 8 Nm³/h
- Input Voltage
- 100–240 V
- Frequency
- 45–60 Hz
- Powder Charge Rate
- 92–95%
- Machine Size
- 550 × 750 × 1100 mm
- Weight
- 28 kg
- Powder Barrel Size
- 600 × 400 mm
