Powder Coating Spray Machine
KBE-M20
Electrostatic powder coating machine that forms a uniform coating thickness with excellent adhesion and reduced powder waste.

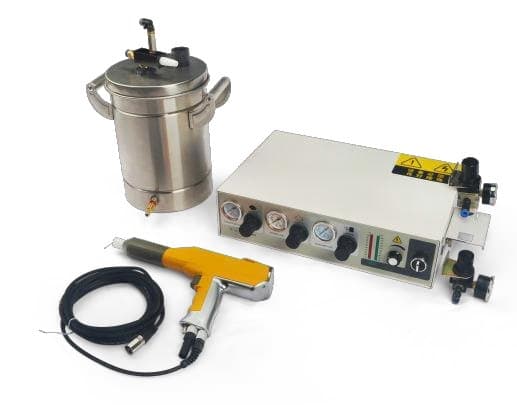

Powder Coating Spray Machine
KBE-851 Vibration
851 series system combining mechanical valve control and 100 kV high-voltage electrostatic technology.
- Voltage
- 110V / 220V
- Frequency
- 50/60 Hz
- Input Power
- 50 W
- Max. Output Current
- 100 µA
Overview
The 851 series professional powder coating system combines mechanical valve control and 100 kV high-voltage electrostatic technology, delivering an excellent quality finish on all kinds of metal parts — such as wheels, engines, profiles, frames and cylinders — and is especially effective on hard-to-reach corners.
Key Features
- Mechanical valve control
- 100 kV high-voltage electrostatic technology
- Excellent quality finish, including hard-to-reach corners
Applications
- Wheels
- Engines
- Profiles
- Frames
- Cylinders
Technical Specifications
- Voltage
- 110V / 220V
- Frequency
- 50/60 Hz
- Input Power
- 50 W
- Max. Output Current
- 100 µA
- Output Power Voltage
- 0–100 kV
- Input Air Pressure
- 0.3–0.6 MPa
- Output Air Pressure
- 0–0.4 MPa
- Powder Consumption
- Max. 550 g/min
- Polarity
- Negative
- Gun Weight
- 480 g
- Length of Gun Cable
- 5 m
